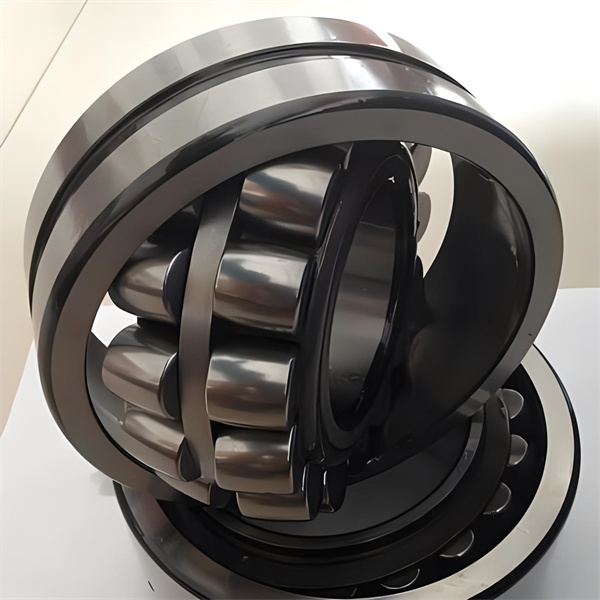

Spherical Roller Bearing: The outer ring is a sphere with the center point of the bearing as the ball center, with automatic aligning, linear contact between the rolling body and the inner and outer ring raceway and can withstand large radial load. Suitable for mining, metallurgy, paper making, construction and other large machinery and equipment.

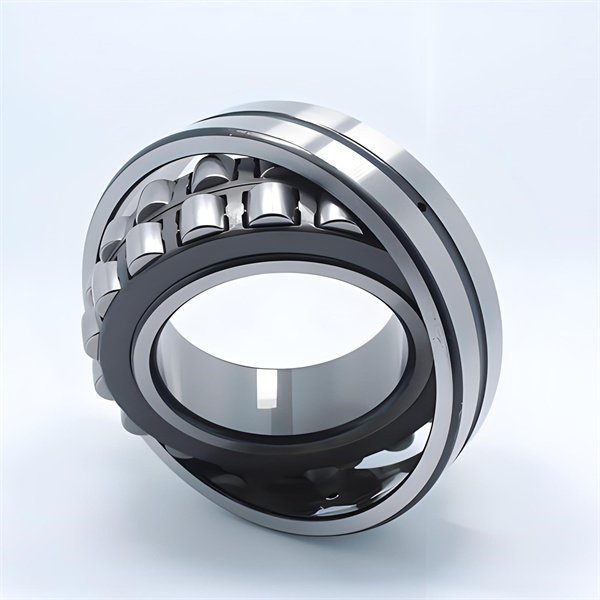

MB type spherical roller bearing
Type MB: Traditional structural improvement design reinforced symmetrical rollers, with two brass alloy cages, and the inner ring has a middle rib. The design load is the same as the CC type, with the characteristics of high rated load and long service life.

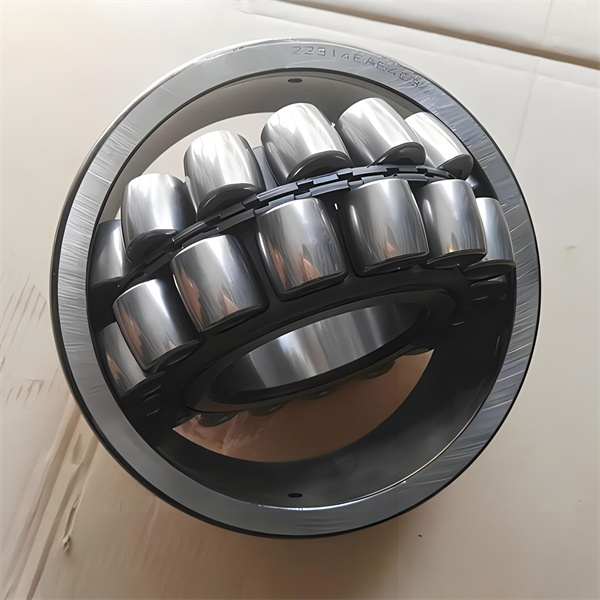

CA type spherical roller bearing
Spherical roller bearings have double row rollers, the outer ring has a shared spherical raceway, and the inner ring has two raceways that are inclined at an angle relative to the bearing axis. Mainly bear radial load, but also can bear axial load in any direction. It has good impact resistance, and generally speaking, the allowable working speed of spherical roller bearings is low. It has the self-aligning performance that other bearings do not have, and the self-aligning performance varies with the bearing size series.

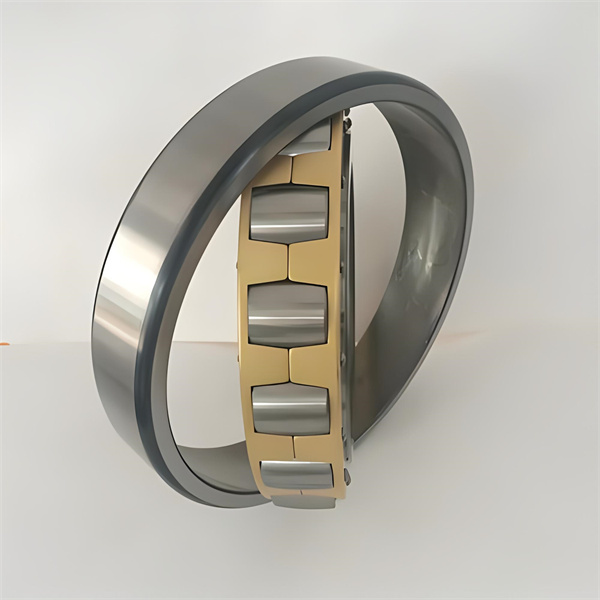

CC type spherical roller bearing
CC structure spherical roller bearings are characterized by the use of steel stamping cages, reinforced symmetrical rolling elements and movable spacers. Generally, it can be used in common with CA structure design.

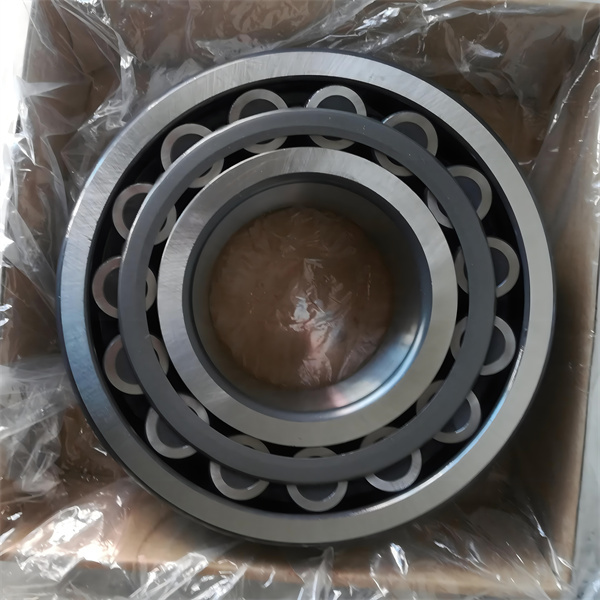

E type spherical roller bearing
The latest international design, it uses symmetrical spherical rollers, two-piece quenched steel stamped cages, the inner ring has no ribs and has a middle retaining ring guided by the cage.

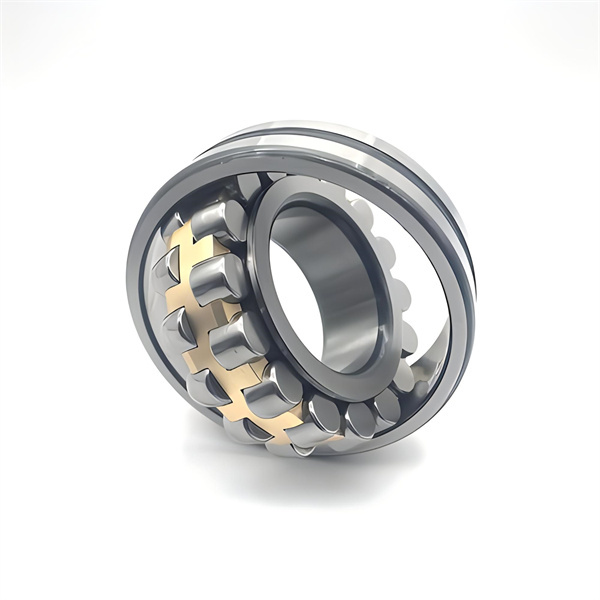

E1 type spherical roller bearing
Type E1 cage E is a reinforced type with higher load capacity. E1 is unique to X-LIFE and represents long life. The E1 type retainer is guided by an outer ring with a retaining ring in the middle, and in spherical rollers, it also represents an oil groove and oil hole.

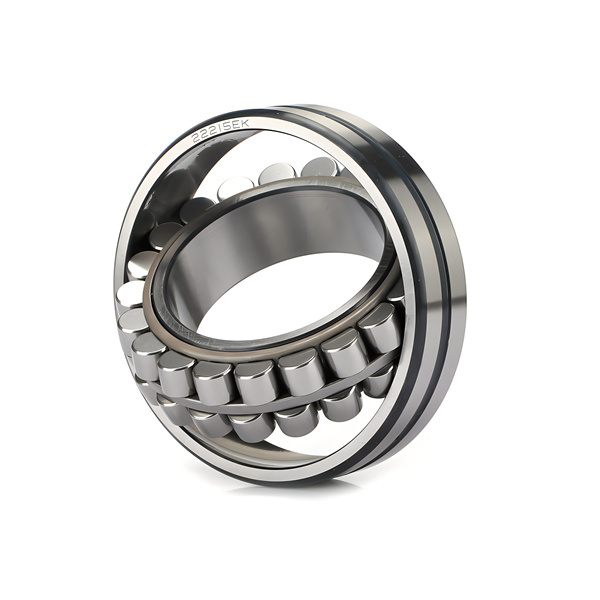

EAE4 type spherical roller bearing
The latest design adopts symmetrical spherical rollers, two-piece quenched steel stamped cages, and the inner ring has no ribs. Features: The cage used in EAE4 bearings has its own guiding function, which effectively reduces the friction caused by the guide ring and reduces noise on the basis of E-type bearings. The high speed and low noise brought by low torque are the biggest features of EAE4 bearings.

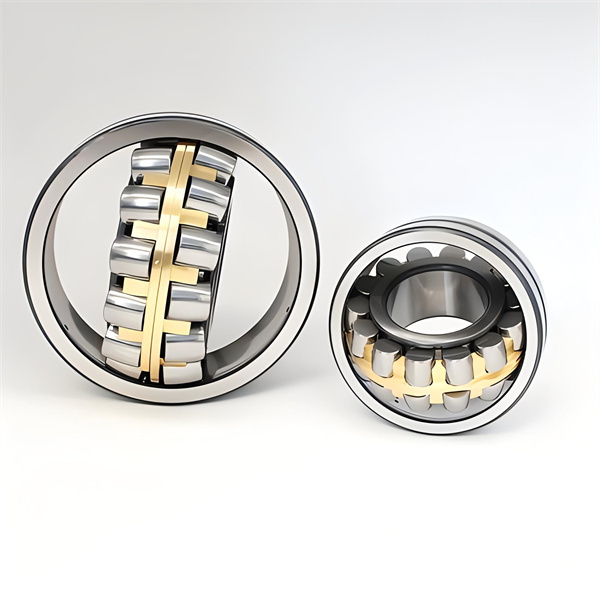

Single Row Spherical Roller Bearings
Single row spherical roller bearing adopts spherical roller, outer ring raceway is spherical, has self-aligning performance, can bear radial load and axial load, is a new type of simple structure, large dynamic load capacity, convenient installation and use Structural bearings.

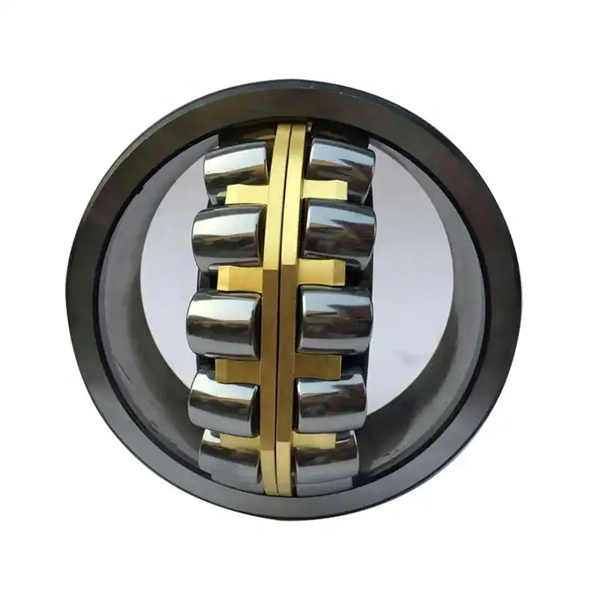

CCJA type spherical roller bearing
The CCJA type is a spherical roller bearing for vibrating screens. It consists of an outer ring, an inner ring, asymmetric rollers and a cage. There is a cage on the upper part of the inner ring, and asymmetric rollers are installed on the cage. The upper part of the cage is the outer ring; the bottom of each cage is equipped with a slope structure. The height of the slope structure is 0.4~0.6 times the thickness of the cage. The angle of the slope structure is 10~15°. The cage is an inner-guided MB spherical roller bearing. Cage or externally guided MB spherical roller bearing cage. The spherical roller bearing for vibrating screens of this utility model is designed with a slope structure at the bottom of each cage, which can effectively store lubricating oil (grease). Between the two cages, it is more convenient for the lubrication inside the bearing. It can prevent the bearing from dry friction at the bottom of the two cages under high-speed, vibration, and impact conditions, which greatly improves the service life of the cage. It improves the life reliability of the new vibrating screen bearing and meets the needs of customers to the greatest extent.
537/1500K Spherical Roller Bearing
The Spherical Roller Bearing has a double row of rollers, with one common spherical raceway in the outer ring and two raceway in the inner ring and inclined at an Angle relative to the bearing axis. This ingenious structure makes it self-aligning, so it is not easy to be affected by the Angle of shaft and bearing box on the error or shaft bending, suitable for installation error or shaft deflection caused by Angle error. The bearing can bear radial load as well as bidirectional axial load.
