Cylindrical Roller Bearing

Single row cylindrical roller bearing is usually only subject to radial force, compared with the ball bearing of the same size, the radial bearing capacity is increased by 1.5-3 times, good rigidity, impact resistance, it is especially suitable for rigid support, and support the short shaft, heat elongation caused by axial displacement of the shaft and the installation and disassembly of the machine accessories need separation type bearing.

CATEGORY：

Cylindrical Roller Bearings

+86-18396893528

sdafl@cn-aflbearing.com

Message

Related Products

Product Description

Keywords：

Cylindrical Roller Bearing

The rolling body is the centripetal rolling bearing of cylindrical roller. The inner structure of cylindrical roller bearing adopts rollers to be arranged in parallel, and there is a spacer or isolation block between rollers, which can prevent the tilt of rollers or friction between rollers, and effectively prevent the increase of rotating torque.

N type:
The inner ring has two integral flanges and the outer ring is without flanges. Axial displacement of the shaft with respect to the housing can be accommodated in both directions within the bearing itself. The bearings are therefore used as non-locating bearings.
NU type:
The outer ring of bearings of the NU design has two integral flanges and the inner ring is without flanges. Axial displacement of the shaft with respect to the housing can be accommodated in both directions within the bearing itself.
NJ type:
The outer ring has two integral flanges and the inner ring one integral flange. The bearings are therefore suitable for the axial location of a shaft in one direction.
NF type:
The outer ring has one integral flange and the inner ring two integral flanges.
NUP type:
The outer ring has two integral flanges and the inner ring one integral flange and one non-integral flange in the form of a loose flange ring. The bearings can be used as locating bearings, i.e. they can provide axial location for a shaft in both directions.
RN type:
No outer ring and the inner ring two integral flanges.
NN type:
NN type bearing without ribs on outer ring,there is a wall in the midel of between both sides of inner ring. It can make shaft relative bearing between the axial displacement generated in both directions.

Characteristics:
1.Roller and raceway are in line contact or downline contact, radial bearing capacity is large, suitable for bearing heavy load and impact load.
2.Small friction coefficient, suitable for high speed, limit speed close to deep groove ball bearings.
3.N type and NU type can be moved in axial direction, can adapt to the change of the relative position between the shaft and the shell caused by thermal expansion or installation error, can be used as free end support.
4.The processing requirements for shafts or seat holes are high. After bearing installation, the relative deviation of the outer ring axis should be strictly controlled to avoid contact stress concentration.
5.The inner ring or outer ring can be separated, easy to install and disassemble.

Application:
Large and medium-sized electric motors, rolling stock, machine tool spindles, internal combustion engines, generators, gas turbines, reduction boxes, rolling mills, vibrating screens and lifting and transportation machinery, etc.

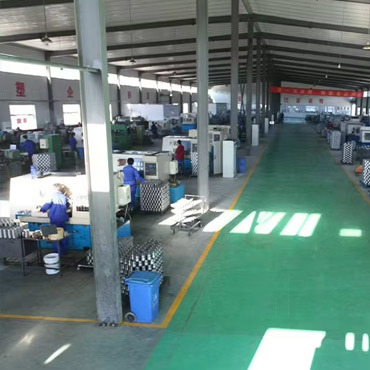

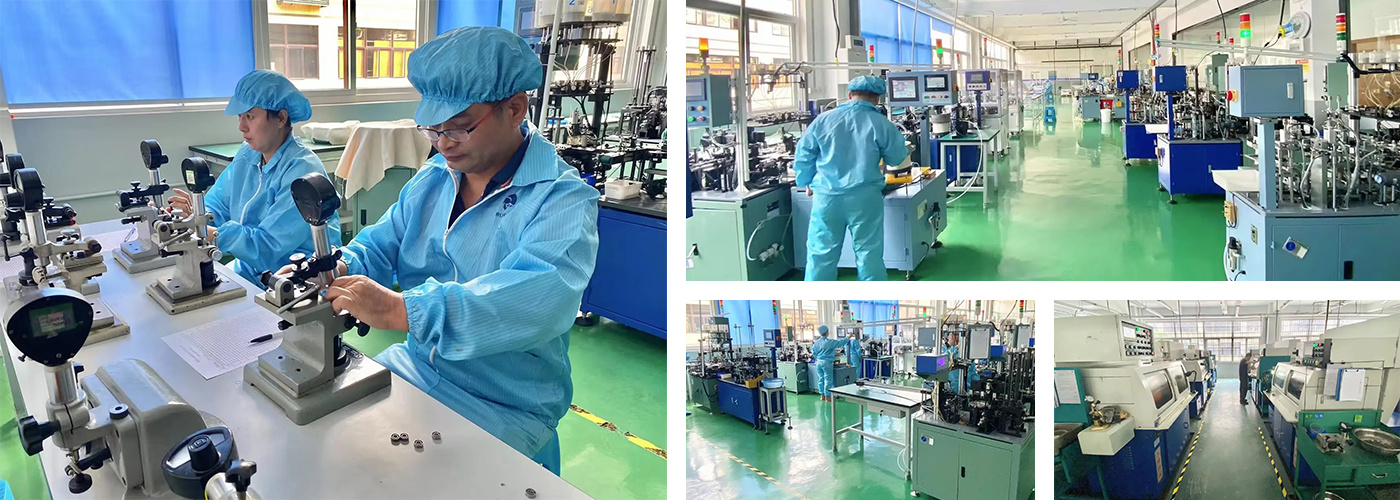

OUR FACTORY

We specialize in providing forklift bearings, deep groove ball bearings, self-aligning ball bearings, self-aligning roller bearings, cylindrical roller bearings, tapered roller bearings, wheel hub bearings, agricultural machinery bearings, etc.

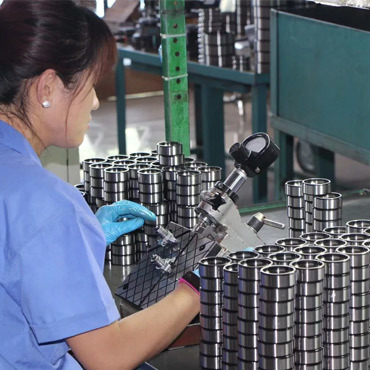

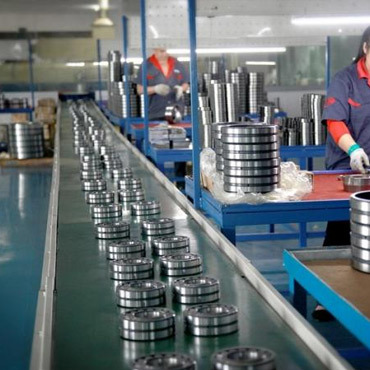

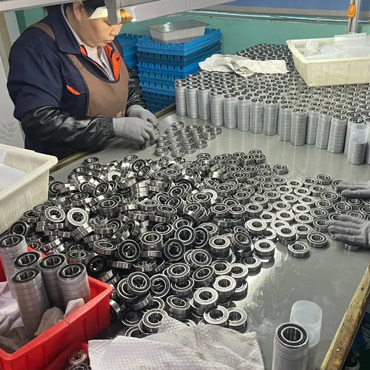

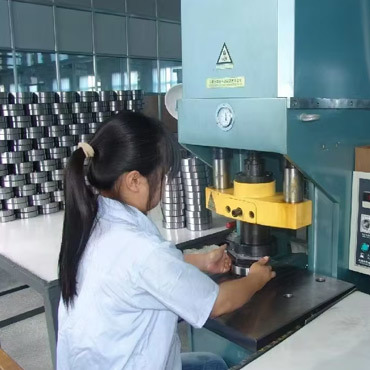

PRODUCT TESTING

We use advanced equipment to conduct strict quality inspection to ensure product quality.

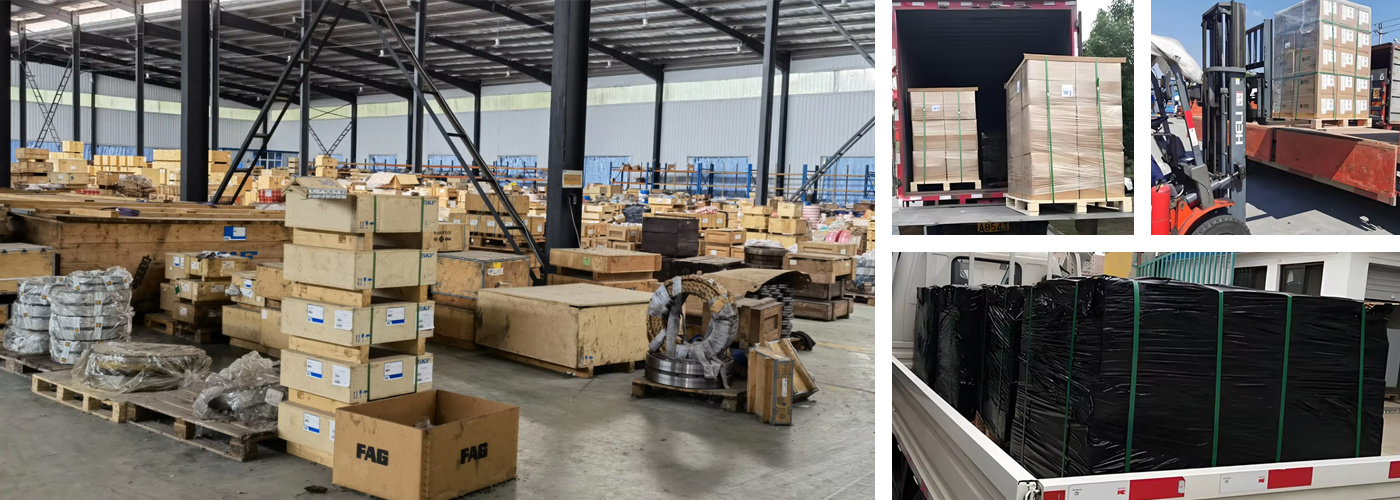

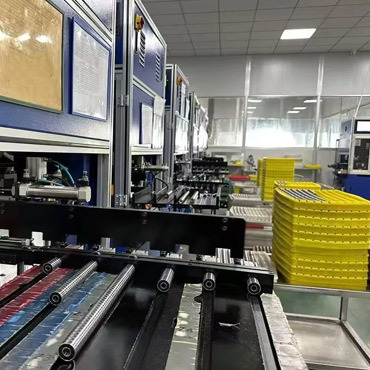

PACKING AND DELIVERY

Sufficient stock for quick shipment.

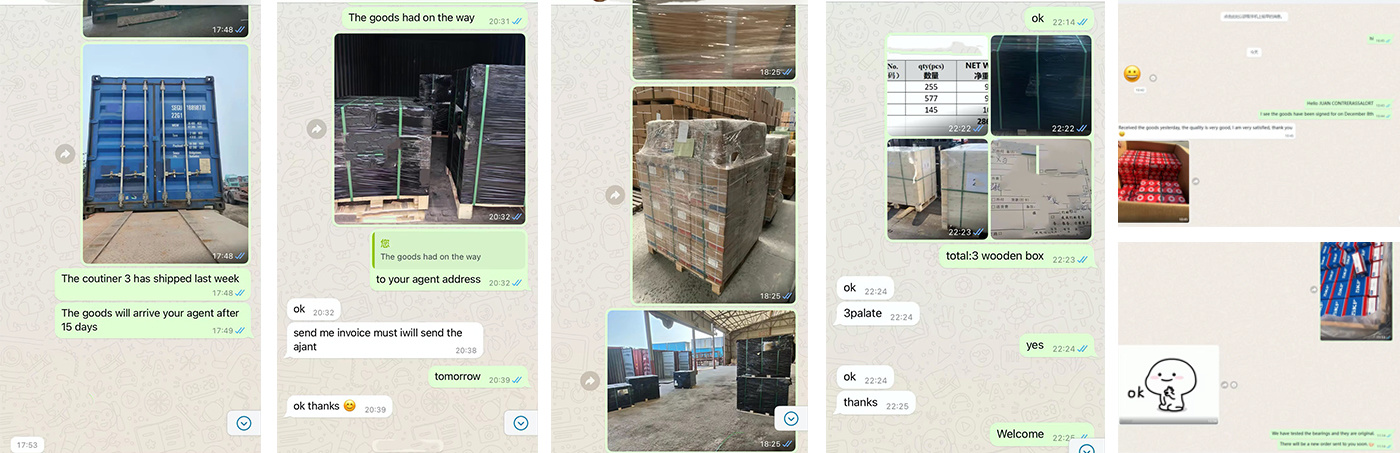

CUSTOMER CHAT

Our professional service team provides you with the best service experience.

THE ADVANTAGES OF CHOOSING AIFULE

Whether you require standard bearing solutions or customized designs, we are here to meet your needs and support your success. Partner with us, and experience the Aifule difference in precision bearing solutions.

SPECIAL DISCOUNTS

QUALITY ASSURANCE

PROFESSIONAL SERVICES

VERY FAST SHIPPING

FAQ

Can we take some samples? Any fees?

Yes, we can provide samples free of charge, but we don't pay for shipping. If you place an order after confirming the sample, we will refund your delivery fee or deduct it from the order amount.

Can I visit your factory?

Of course. We welcome customers from all over the world to visit our factory.

Are you a trading company or a manufacturer?

We are a professional bearing production company, but also a very professional bearing trading company Product. We can also provide all kinds of bearing products.

How do you make our business relationship good in the long run?

1. We maintain good quality and competitive prices to ensure the benefit of our customers. 2. We treat every customer as a friend, no matter where they come from, we sincerely do business with them and make friends.
